East (Community Site)

Antenna
Andrew DB-224E
Radio Hardware
GE Delta VHF
Link Transmitter
GE Delta UHF
Antenna Height from Ground
750 Feet

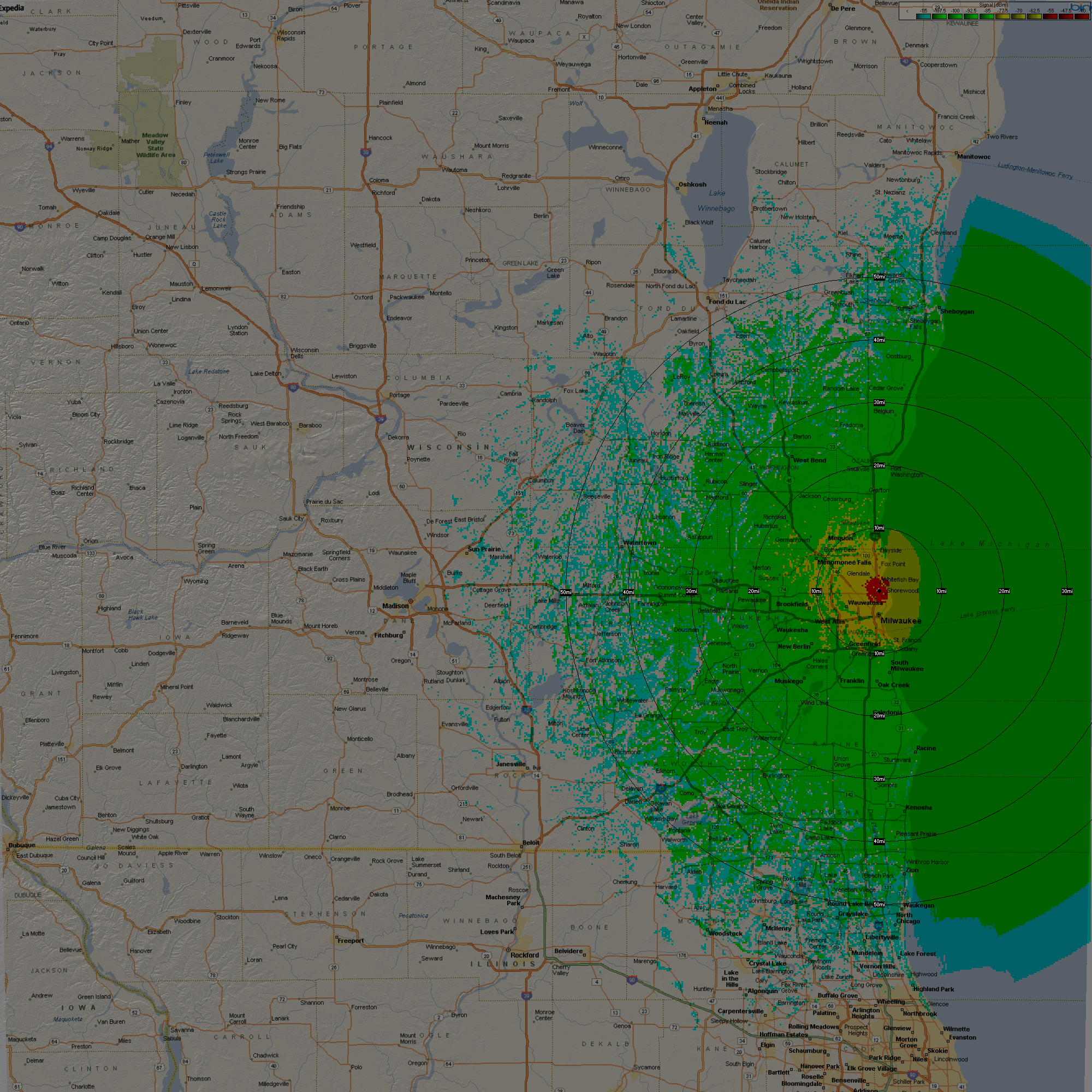

East Receiver Coverage 50 Watts Mobile

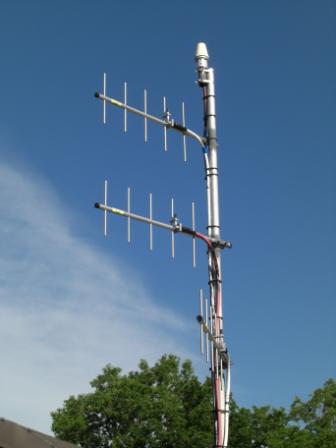

Link Beams.

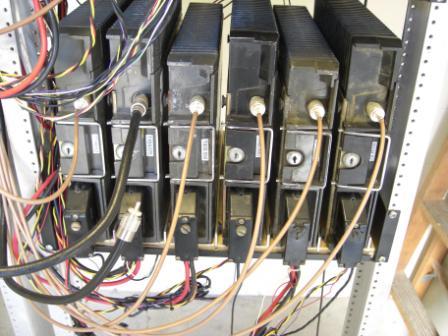

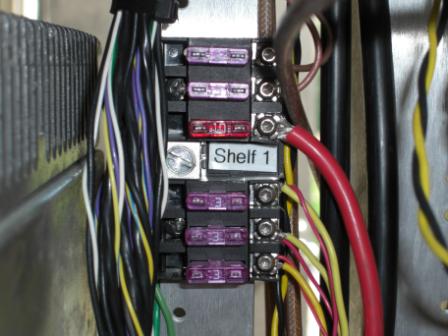

Equipment shelf distribution.

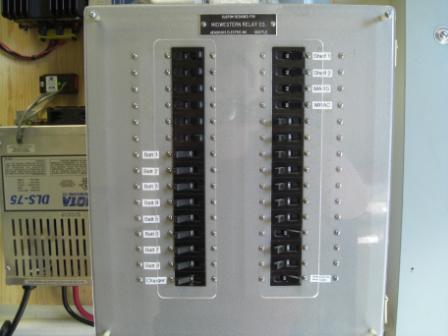

DC power distribution.

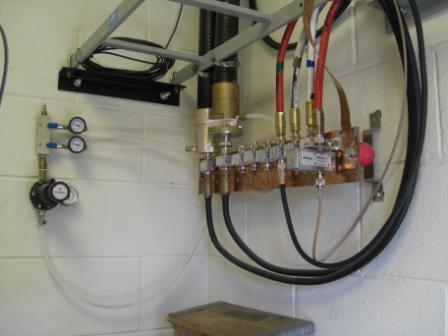

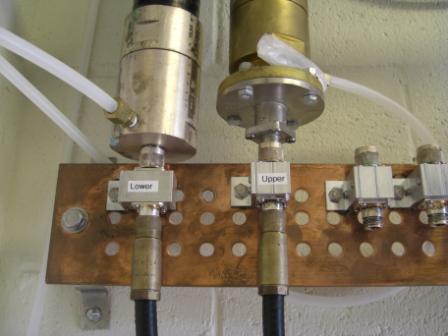

2.25 inch Heliax terminations for each antenna level.

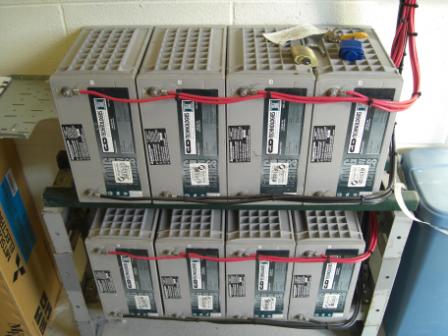

960 amp hours of battery backup.
MAARS, FM38 and MSOE W9HHX.
Grounding bar.

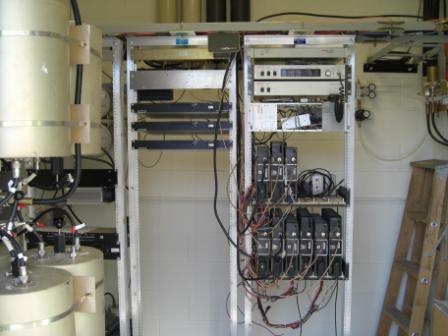

Rack room.
